Job Autoselect Configurator

Located within Console Menu items


Job Autoselect Configurator allows to manage JobAutoSelection mode behaviour.

For the Local Job AutoSelection, Job Autoselect Configurator allows to create-edit-delete operations on Barcode-Job pairs.

For the Remote Job AutoSelection, Job Autoselect Configurator allows to create-edit-delete actions.

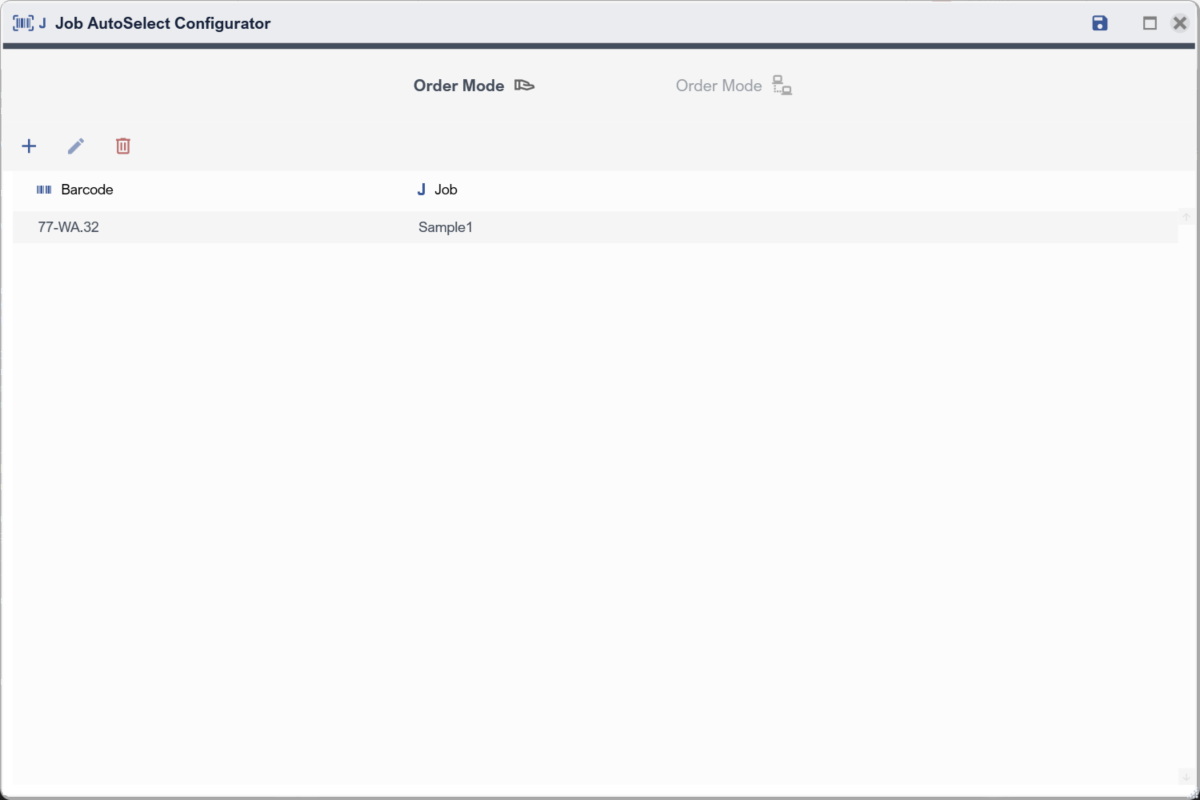

For  Local, Configurator allows to create-edit-delete operations on Barcode-Job pairs


Toolbar Button

Description

Create new pair

Edit selected pair

Delete selected pair

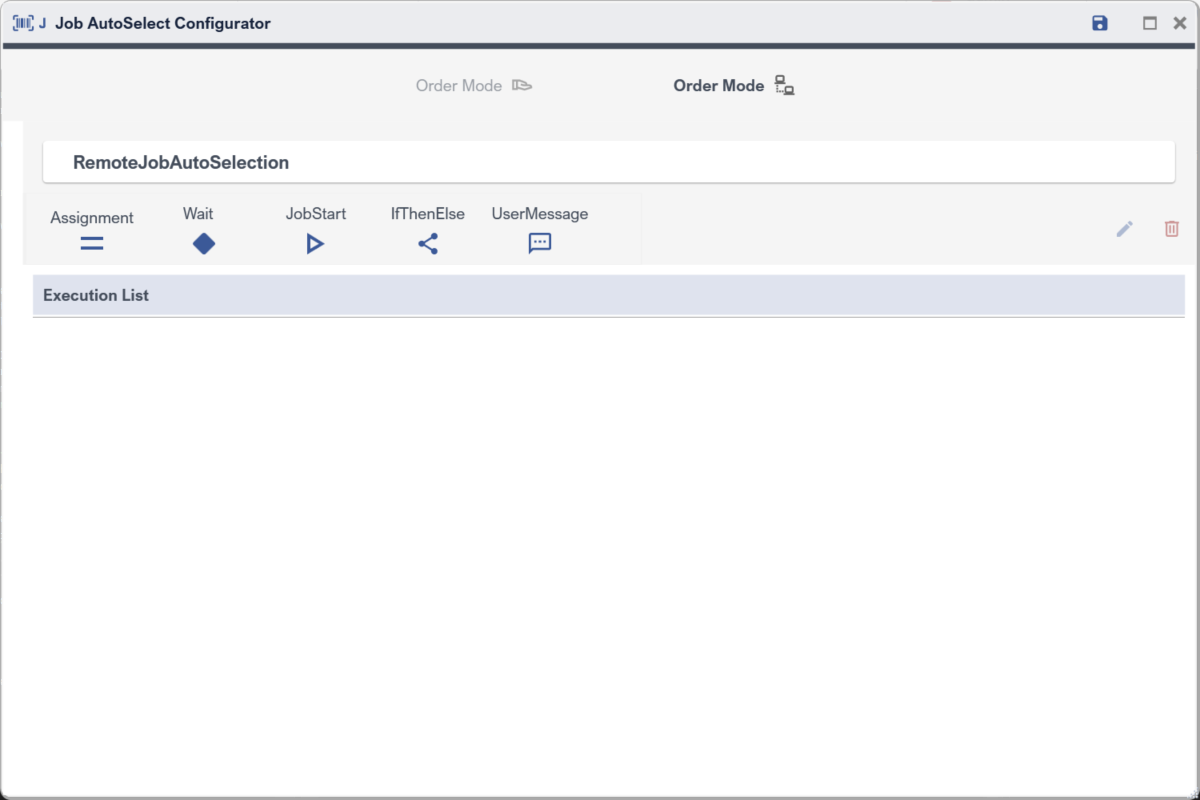

For  Remote, Configurator allows to manage the predefined event.


Toolbar Button

Description

Edit selected action Line

Delete selected action Line


The event has a special Action, so called Job Start, and links required parameters to tags.

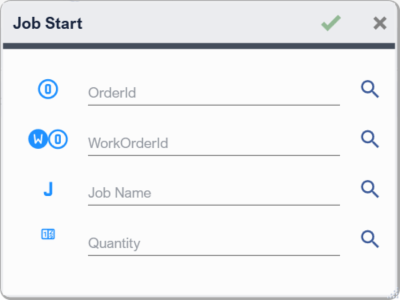

Job Start action parameter dialog
